This laser scanner reference sphere is clearly the first choice for surveyors and users who use tacheometry to determine the positions of their reference points. You can easily and exactly determine the center of the reference sphere using a special laser scanning mini prism. Consequently, time and expense will be saved when it comes to determining the laser scanner reference spheres.

The spherical shape allows the highest possible scanning efficiency from various directions, and it has been proven to be the most effective laser scanner target. In addition, it is very flexible as the magnet can be detached from the reference sphere. Quality: Made in Germany.

The reference spheres have a diameter identically equal to that one of the manufacturer's original model (FARO Registration Spheres, Starter Kit) and are easily used for the detection of spheres ( for automatic registration) with the laser scanning analysis software FARO Scene.

Product attributes:

• diameter Ø 145mm (5.7 in)

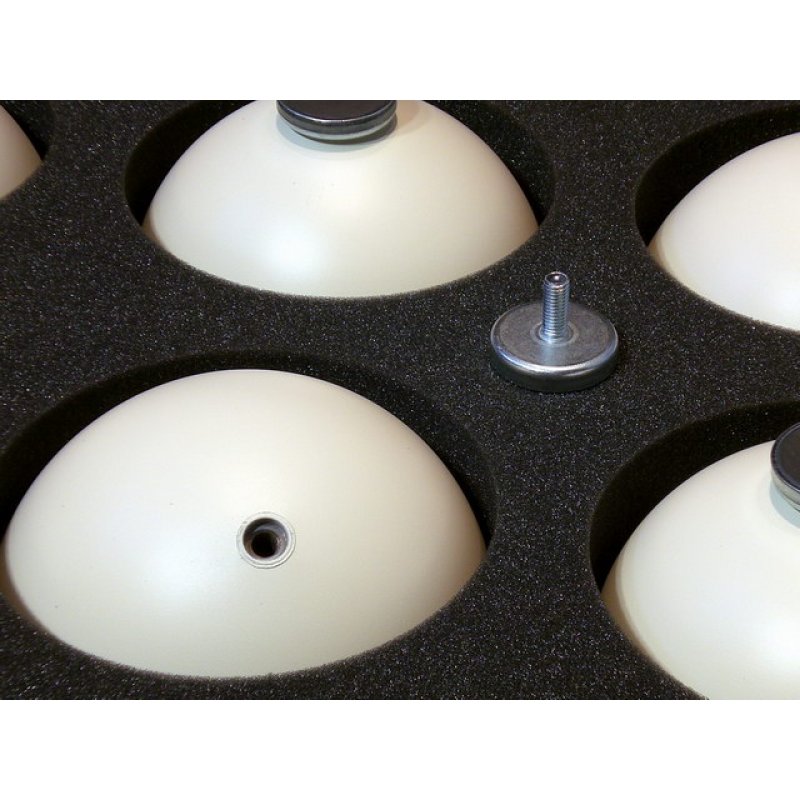

• special adapter (female thread M8) for Mini Prism (Product No.: 50023)
• reference sphere is a hollow laser scanner sphere made of a plastic with a distinctive surface to achieve excellent reflective properties

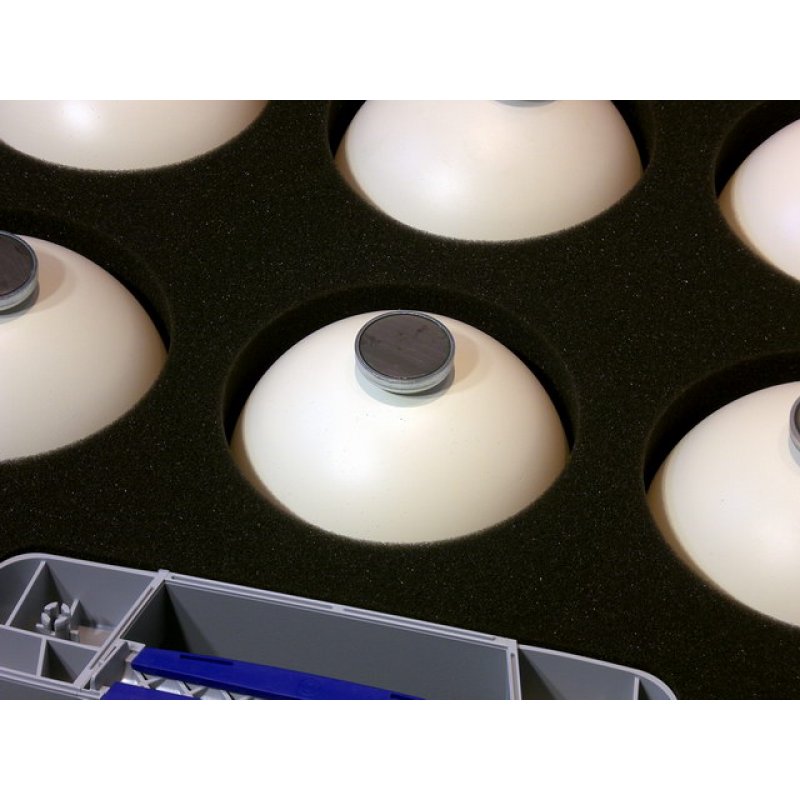

• includes detachable magnet base (M8/0.8 in)

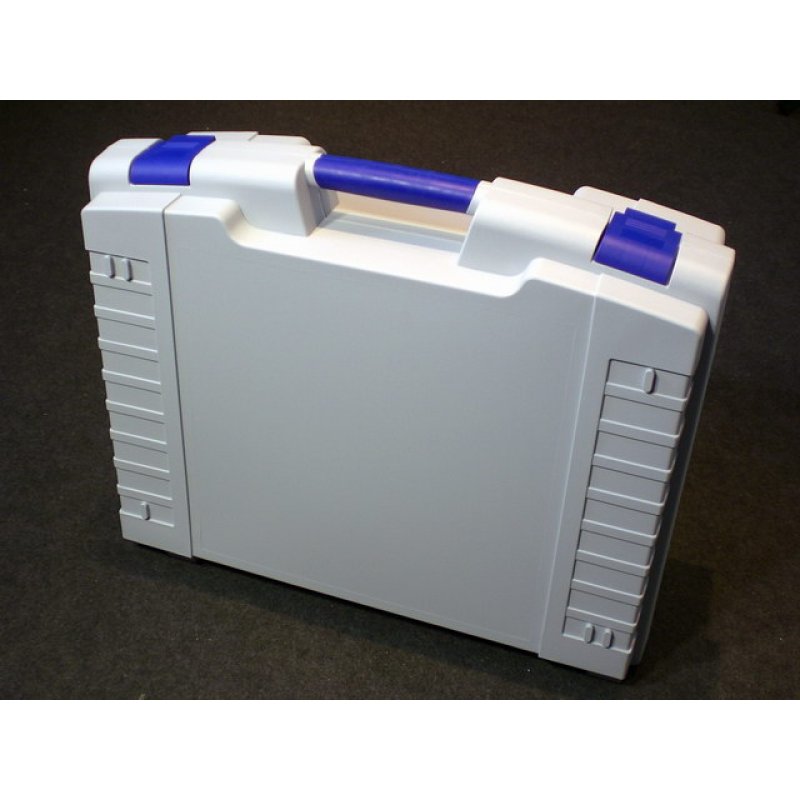

• case dimensions: 575 x 470 x 205 mm (22.4 x 18.5 x 8.1 in)
• case with precut foam insert for safe transport

Applications:

• suitable for permanent reference and control points, which are determined via tacheometry
• reliable and proven targets to help the registration of scan passes

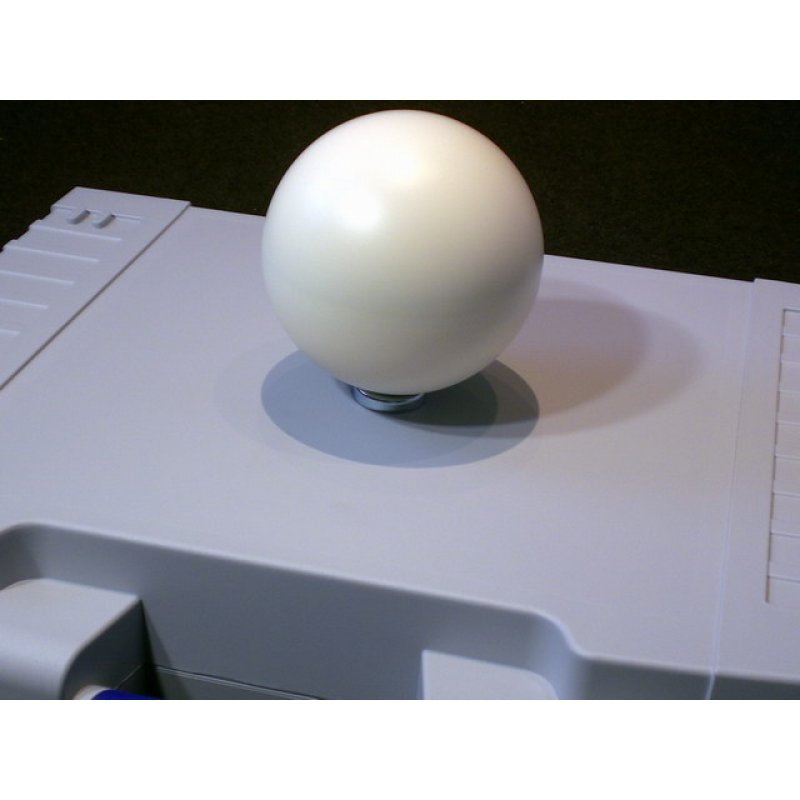

• easy and quick installation on magnetic surfaces due to a centered magnet base
• can be used with fixed points employing tripod or prism pole and fitting adapter

Areas of application:

• architecture, construction, and preservation of historic buildings and monuments
• digital factory and plant construction
• mining industry and tunnel construction
• energy and supplying industry
• aircraft construction and shipbuilding
• foundries and steel industry
• chemical and process engineering
• forensic

Compatible laser scanners:

• FARO LS 420
• FARO LS 880
• FARO Photon LS 20
• FARO Photon LS 80
• FARO Photon LS 120
• FARO Focus 3D 20
• FARO Focus 3D 120
• Leica HDS 6100
• Leica HDS 4400

Scope of delivery:

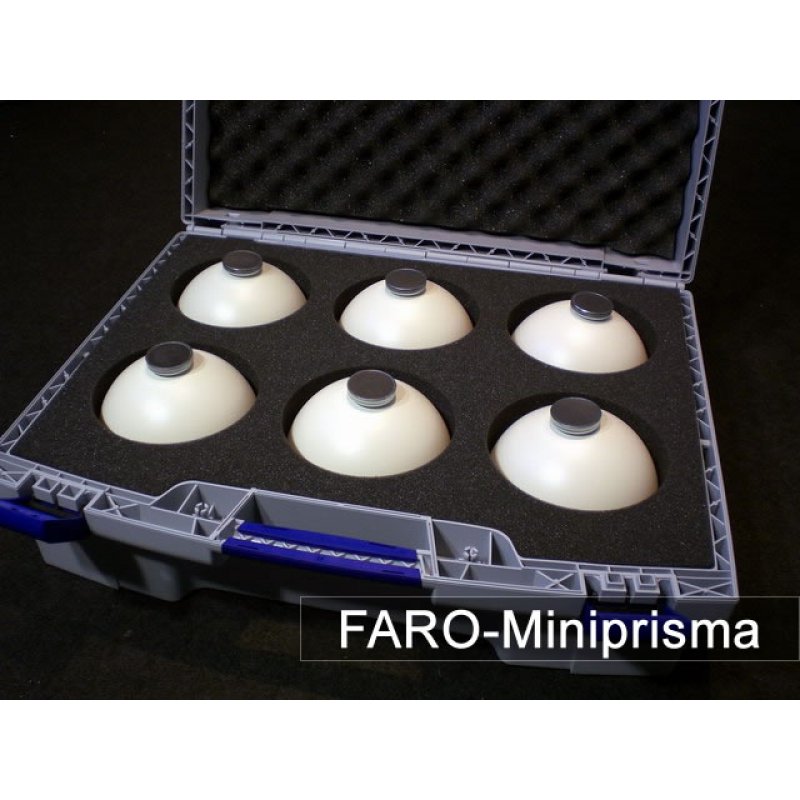

• 6 reference spheres plastic Ø 145mm (5.7 in), special adapter (female thread M8) for Mini Prism
• 6 magnetic holders short (M8/0.8 in), suitable for our stickers
• 1 plastic case with foam insert for spheres

Notes:

• The Laser Scanner Reference Sphere Set (Mini Prism Adapter) is especially useful for projects that will use tacheometry to determine positions of reference points.
• The center of the reference sphere can be easily determined by means of a mini prism (item no.: 50023).
• Some 12 to 18 reference spheres are used for scanning complex objects.
• Reference spheres are our first choice if a universal solution and an easy handling is needed.
• Use our stickers to permanently mark your reference and control points (for several passes, resurveys, control surveys, etc.).

Do you want to know how to successfully use 3D reference stickers, reference spheres, and mini prisms? Check it out here:

>Laser Scanning TV: Laser Scanner Accessories Video

Synonyms: target, scan sphere, reference target, control point, point of reference, reference point, reference sphere set, laser scanner target sphere set, laser scanner reference sphere set, laser scanner target sphere, laser scanner reference sphere, reference ball, target ball, ground control point, GCP
