In poorly lit environments, the laser scanner's color images are usually of inferior quality. Not with this product!

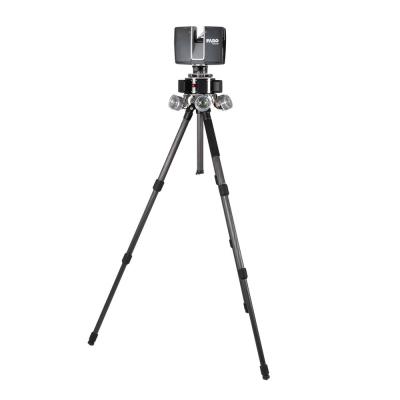

The robust 360° lighting is the excellent scanning accessory if you want to generate laser scans with high-quality photos in caves or tunnels, for example. Mounted between the 3D laser scanner and the tripod, the powerful floodlight ensures homogeneous illumination of the surroundings.
Whether you need to work in a confined, dark space or at night in a public area when crowds are no longer around, the lighting turns night into day!
Thus, you are even more flexible in your scanning projects and get high-quality colored point clouds even in difficult environmental conditions.
What are the special features of the lighting?
The 360° lighting was specially developed for use with various 3D laser scanners. The homogeneous light covers the fields of view of the laser scanner sensors.
The product is made of high quality components, so the lights' performance, robustness, autonomy and ergonomics make them a perfect companion for your scanning Projects.
The autonomy of the entire illumination or individual light elements can be controlled as needed to achieve optimal results in any Situation.
The quality of the light produced as well as the intensity are a guarantee of success for photographic 360° Renderings.
Designated use
- Artificial light for better illumination in low light conditions
- Realistic color reproduction for colored point clouds
- Illumination of the scan scene even in confined and/or unlighted environments, e.g. caves
Product characteristics
- Material: Aluminum
- Prowide luminaires for high light quality and intensity – optimal for color 360° renderings
- 6 lights in 360° at a module
Horizontally, the light heads cover the entire light periphery, on 360 °. An overlap of the lighting cones makes the light flow very homogeneous.
Vertically, the lighting heads are positioned so as not to send direct light on the optics of the scanner so as not to disturb the photographic capture. The light reflection within the volume makes it possible to cover the areas without direct light.
- Luminous flux (by lighting head):
- Mode 1: 450 lm (Lumens)
- Mode 2: 1050 lm
- Mode 3: 1500 lm
- Mode 4: 1500 lm
- Mode 5: 3000 lm
- Possibility to control each light element individually to vary the light intensity in different angle ranges
- Incl. lithium-ion batteries – autonomous lighting for about one working day
- Autonomy*:
- Mode 1: 18 h 30 min before activating the shutdown prevention for the battery, 19 h 30 min until shutdown
- Mode 2: 11 h 20 min before activating the shutdown prevention for the battery, 12 h 40 min until shutdown
- Mode 3: 7 h 30 min before activating the shutdown prevention for the battery, 9 h until shutdown
- Mode 4: 7 h 30 min before activating the shutdown prevention for the battery, 9 h until shutdown
- Mode 5: 5 h 00 before activating the shutdown prevention for the battery, 5 h 30 min until shutdown
- Energy stored in the battery module: 6x 75.6 Wh (453.6 Wh in total)
- Charging time : 6 hours
- LED color temperatures : 5700k (3000 or 4000 in Option)
- CRI (Colour Rendering Index) of LED : 90
- Flicker on the modes 1 and 2 : 20 000Hz
- Watertightness: IP 64
- Operating temperature range: -10°C to +40°C
- Non-magnetic
- Charger power supply : 100 – 240 V; 50 – 60 Hz max; 7.2 A
- Dimensions:
- Lighting device: diameter 328mm, height 203mm
- Charger: 167x160mm, height 155mm
- Case: 62x50x23cm
- Weight:
- Case incl. equipment: about 11kg
- Light module assembled: 4kg (without charger)
- Charger: 1.2kg
- Incl. voltmeter for checking battery charge
- Scanner connection: 3/8" thread
- Tripod connection: 5/8" thread with 3/8" adapter screwed in (The adapter can be unscrewed if necessary).
* Each light head is connected to its own battery. The autonomy is therefore given for a light head.
Please note, these values are given for an ambient temperature between 20 and 22 ° C.
Fields of application
- Architecture, preservation of buildings and monuments
- Design and planning of factory buildings and digital factory
- Mining industry and tunnel construction
- Cave documentation
- Public service corporations
- Aircraft construction and naval architecture
- Foundries and steel Industry
- Chemistry and process industry
- Forensics
- Virtual Reality
Compatibile laser scanners
- FARO Focus Premium
- FARO Focus Core
- FARO Focus S 70
- FARO Focus S 150
- FARO Focus S 350
- FARO Focus M 70
- FARO Focus3D X 30
- FARO Focus3D X 130
- FARO Focus 3D X 350
- FARO Focus3D S 120
Compatible tripods
- Tripods with a support plate with a maximum diameter of 15cm
- Tripods with 5/8" or 3/8" male thread
Please respect the maximum payload of the tripod.
Delivery content
- 360° light head
- Battery module (Li-ion)
- Charger
- Pelicase with custom inlay
Notes
- A second battery module is available separately on request.
- The battery runtime depends on the ambient temperature. The cold decreases the autonomy exponentially.
- Due to the lighting, spreading of the tripod legs is limited.
