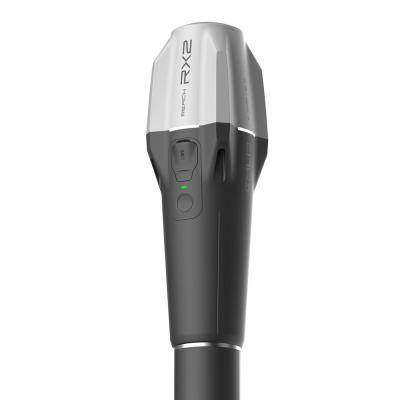

EMLID Reach RX2

numero articolo: 030-13874_O

Contenuto

1.999,00 €

escl. 19% IVA ,

Questo prodotto ha delle varianti. Prego selezionare le varianti desiderate.

descrizione
Video
Domande sul prodotto

The EMLID Reach RX2, like its predecessor the RX, uses Bluetooth Low Energy (BLE) to connect to a Smartphone. To start surveying, simply activate Bluetooth on your smartphone (iOS or Android), connect the Reach RX2 in the EMLID Flow app and add network correction credentials. Once connected, your smartphone accesses network corrections (NTRIP) via your mobile internet connection and sends them to the RX2 via BLE. No further configuration is required.

With the RX2, you can expect a centimetre-accurate fixed point in less than five seconds, even under difficult conditions. The EMLID Reach RX2 was developed with simplicity in mind, so that anyone, from non-surveyors to experienced professionals, can set up and use the RX2 in seconds.

Product characteristics

Network rover with centimetre accuracy
Works with network corrections (NTRIP)
Uses Bluetooth Low Energy (BLE)
Precision:
- RTK: 7mm + 1ppm
- Tilt compensation: RTK + 2mm + 0,3 mm/°
Signal tracking:
- GPS: L1C/A, L2C, L5
- GLONASS: L1OF, L2OF
- Galileo: E1-B/C, E5a, E6
- BeiDou: B1I, B1C, B2a, B3I
- QZSS: L1C/A, L1C/B11, L2C, L5
- NavIC: L1-SPS Data, L5-SPS
Fix solution in under 5 seconds
Dimensions: 172 x 51 x 51 mm
Weight: 280 g
Protection class: IP68 – Waterproof to a depth of 1.5 m. All connections are completely sealed and protected from water and dust by silicone plugs.
Li-ion industrial battery
Operating temperatures: -20 to +65°C
Battery life: 16 hours
Battery charging time: 1 hour
Easy to set up, no configuration required
