Large laser scanner checkerboard targets as a set

Item number: 030-10660

The set comes with 5 checkerboard targets, which fit neatly into the space-saving bag.
connectivity options

529,00 €

Excluding16% VAT. , plus shipping

Delivery status: 1-2 workdays

There are variations of this item. Please select the variation you wish.


Universal: This checkerboard target can be used with both laser scanners and tachymeters (non-reflective).

Flexibility: Besides its compact dimensions ensuring easy handling, the checkerboard target is an ideal laser scanning companion due to its ability to measure long distances.

Product attributes:

  • torsion-stiff composite plates made of aluminum with low weight
  • remarkably even surfaces ensure excellent results
  • dimensions: 45 x 42 cm (17.7 x 16.5 in)
  • dimensions of the checkered pattern: 40 x 40 cm (7.9 x 7.9 in)
  • weather-resistant
  • integrated circular level
  • The axis of the checkered pattern is exactly situated in the axis of the connection. In the case of a level checkerboard target, the center of the checkerboard target is still unchanged in position and height when it pivots on the axis.
  • bag made of a padded water-repellent material
  • well-padded water-repellent bag
  • can be mounted on different tripods and fits onto various adapters (available for Leica plug, M8 + magnet,1/4"and 5/8'')

Applications:

  • long distance measurements (up to 147 feet)
  • can be freely adjusted and positioned by use of a tripod and a claw system

Areas of application:

  • architecture, construction, and preservation of historic buildings and monuments
  • digital factory and plant construction
  • mining industry and tunnel construction
  • energy and supplying industry
  • chemical and process engineering
  • forensic

Compatible laser scanners

  • Leica RTC360
  • Leica BLK360
  • FARO LS 420
  • FARO LS 880
  • FARO Photon LS 20
  • FARO Photon LS 80
  • FARO Photon LS 120
  • FARO Focus3D S 20
  • FARO Focus3D S 120
  • FARO Focus3D X 30
  • FARO Focus3D X 130
  • FARO Focus3D X 330
  • FARO Focus S 70
  • FARO Focus S 150
  • FARO Focus S 350
  • FARO Focus M 70
  • Trimble TX5
  • Trimble TX8
  • Leica HDS 4400/6100
  • Leica ScanStation P20/ P30/ P40
  • Teledyne Polaris

Tripod socket compatibility:

  • Leica plug (fixation is made with a horizontal knurled screw)
  • 5/8'' for fixation onto tripods or other appropriate surveying accessories
  • 1/4 inch for use on camera tripods
  • M8 thread + magnet: can be used with a LSE prism pole, a suction cup holder or simply with the magnets of our reference spheres
  • Further connection options are possible. Please contact us!

Scope of delivery:

  • 5 x large laser scanner checkerboard targets
  • 1 x bag for safe transport

Notes:

  • If you are experiencing problems in positioning and placing your targets, please contact us and benefit from our free advice.

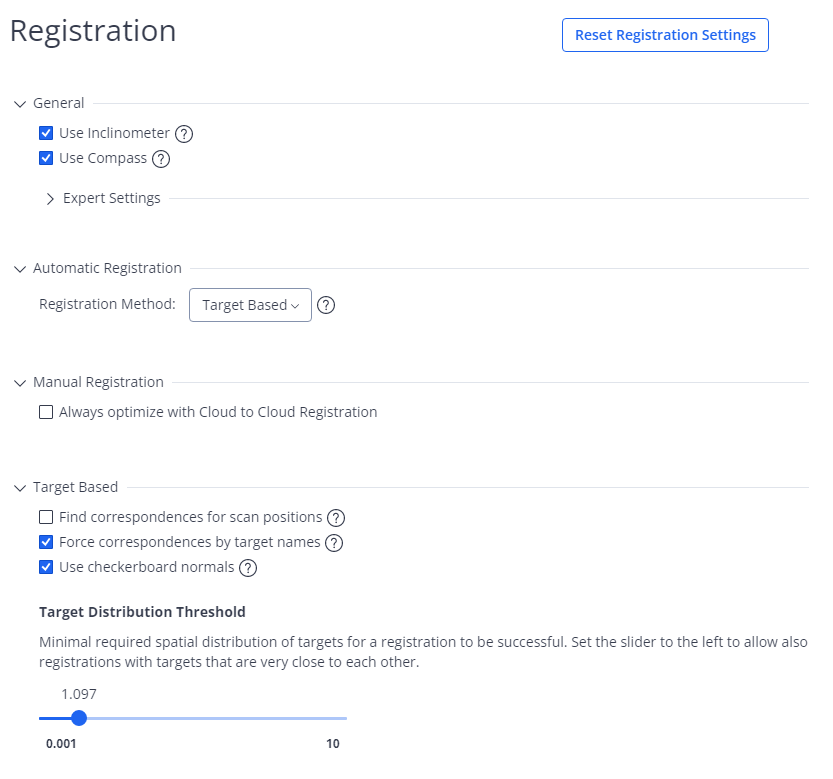

Hints for registration in FARO Scene:

  • If you use pivoted checkerboard targets (orientation towards the scanner), you should deactivate the box “Use Checkerboard Normals” in the default setting of placement of scans in Scene Software. For more information, click here.

Synonyms: target board, laser scanner reference target, checkered pattern, target plate


Product weight: 6,80 Kg
